More and more people are turning to virtualization these days. One of the main reasons is in order to test pre-release, beta, or alpha software. When it comes to Linux, the operating systems are in a state of constant flux so there’s always something new to test. People routinely want to test beta versions of KDE and Gnome and other desktops before comitting, or simply want to see what features are in development.

We’d previously written an article about installing Ubuntu 6.10 Edgy Eft Knot 2 (it IS a long name) on a Mac Mini, so to do the same would be batty. Instead, this guide covers testing the newest Ubuntu 6.10 Edgy Eft Knot 3 on Windows XP using free (as in beer) virtualization. This guide would also apply to anyone testing on various flavours as well, as long as they can run our free virtualization software: VMWare Server 1.01.

Setting up the Ubuntu virtual machine in VMWare server is very easy (click the pictures for larger versions):

Connect to your local VMWare Server installation if you run it locally, or connect to your remote VMWare Server.

We’ll select “typical” for this virtual machine as VMWare Server includes a configuration for Ubuntu already.

And, speaking of which, here it is! Make sure to select the plain “Ubuntu” option, unless you are running a 64bit host, and downloaded the 64bit version of Edgy Eft knot 3.

Name your virtual machine and select the location. The defaults should be fine here but feel free to tinker.

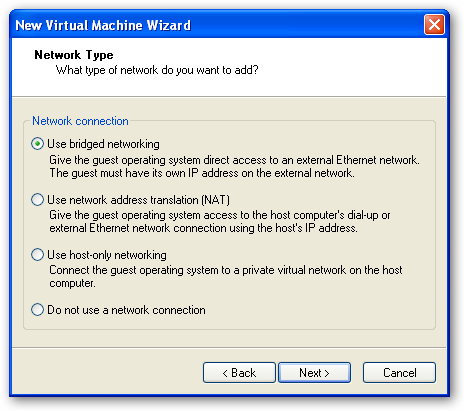

I typically use bridged networking, but for added obfuscation you can use NAT (which creates a virtual network based on your host’s network connection). You could also select host-only if you only want to be able to contact the host operating system. In fact, if you really wanted to make sure the machine is isolated from the wiki wikid web, don it with a nice tinfoil hat and disable networking completely. Ubuntu won’t be happy, but it looks pretty nice in a tinfoil hat.

8 GB of diskspace is fine for testing.You’re not going to be leeching full seasons of Lost… at least we hope so.

Since we opted to allocate diskspace now, VMWare Server will start creating the 8GB file. This can take some time depending on your computer’s hardware. In my case this took a few minutes – I use SATA2 NCQ hard drives and have 2GB of RAM. Your mileage may vary.

You now have a default virtual machine set up, but it will need some slight tweaking in order to install Edgy Eft Knot 3 as fast as possible. Click on “edit virtual machine settings” and remove the floppy drive – we don’t need it. Set the memory to at least 512MB, but it really depends on your total amount. Since I have 2GB total RAM on my host I select 1GB normally. Edit the CDROM settings and point it at your Ubuntu Edgy Eft Knot 3 CD image. Click “OK” – we’re set for lift off.

Press start and drool over the new llivecd boot screen. Note the reflection on the logo. How original.

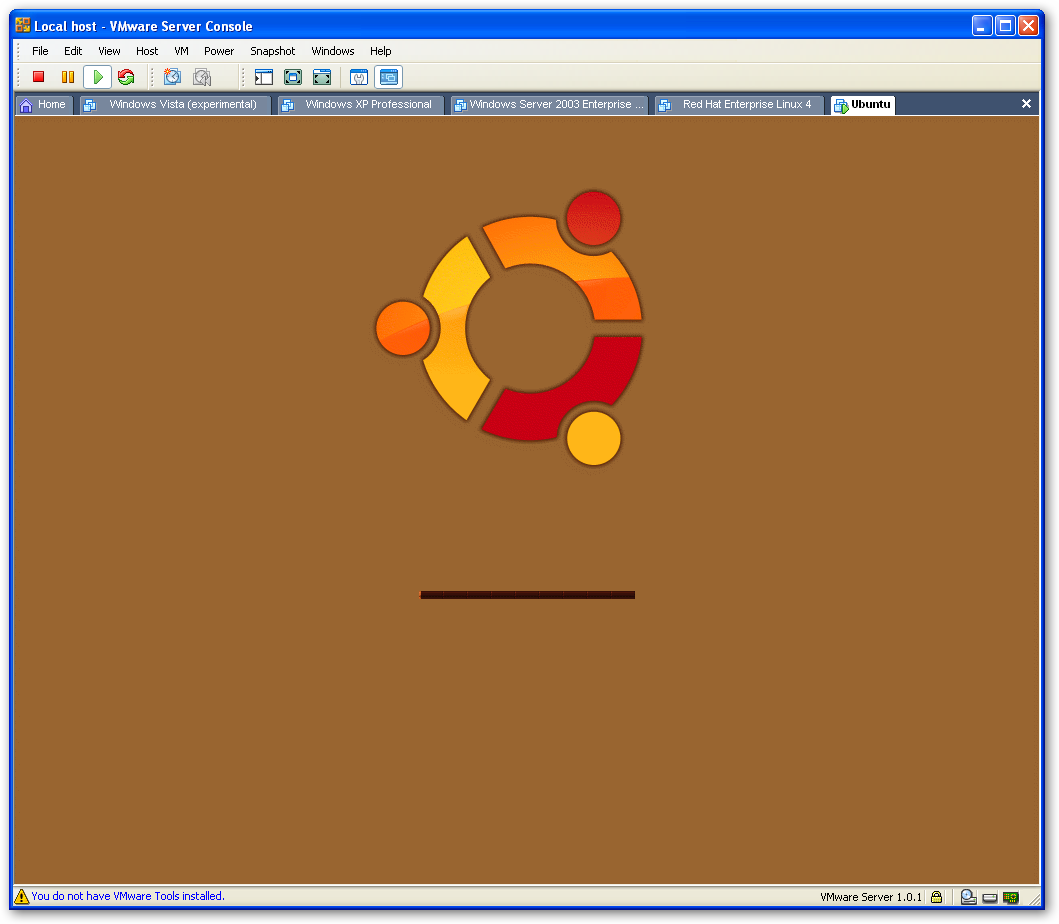

Now we’re at another original boot screen – the progress loader. Note the gradient progressbar, and the Crystal-esque Ubuntu logo. Reminds us of 3 years ago, doesn’t it precious? Yes, yes it does.

We’ve landed at the desktop. You may stop here if all you wanted was a secure browsing solution with no cookies and passwords to worry about. Should we wish to continue, our mission involves double-clicking that obvious “install” icon. Let’s go for it.

This is an easy 6 step process. Step 1 – select your language.

Step 2 – Select your location or timezone.

Step 3 – Select your keyboard layout. I normally recommend you test the layout just in case. We’ve typed in “blandname” here for demonstration purposes. You may wish to try typing “Ubuntu”, but nothing else lest ye be stricken down.

Step 4 – Identify yourself. This information will be used later in life to incriminate you. Be choosy with naming and passwords. Harry MacDonald that means you! Try typing in something other than your real name here – it works, I promise.

Step 5 – We’ve pre-allocated our diskpace, so no need to worry about this one. Just click the “forward” button.

Step 6 – There really isn’t a step 6. The Ubuntu team has decided to waste our time by confirming the already tedious and easy task. Onward, ho!

Installing – took me 30 minutes. It may take you an eternity, but with hardware prices where thet are, I seriously doubt it will take you long to be rolling with a virtual Edgy Eft install.

The eternity has passed, and we’re going to reboot. Don’t forget to disable or otherwise change the CDROM settings so you don’t end up installing again – that would be embarassing, right?

There you have it – the pretty login screen. Note those options. XDMCP looks very intriguing doesn’t it? We’ll get to that later…

And presto! What have we got here? Firefox 2.0b1 – Bon Echo Beta 1! Try it out and see what you think, I’m impressed so far to be honest.

So that’s it, you now have a working Ubuntu 6.10 Edgy Eft Knot 3 test virtual machine (edit: let’s make the name longer). And it weren’t hard neither! When Knot 4 comes out you’ll be able to do it in your sleep. If not, well we’ll see you searching for it again.
